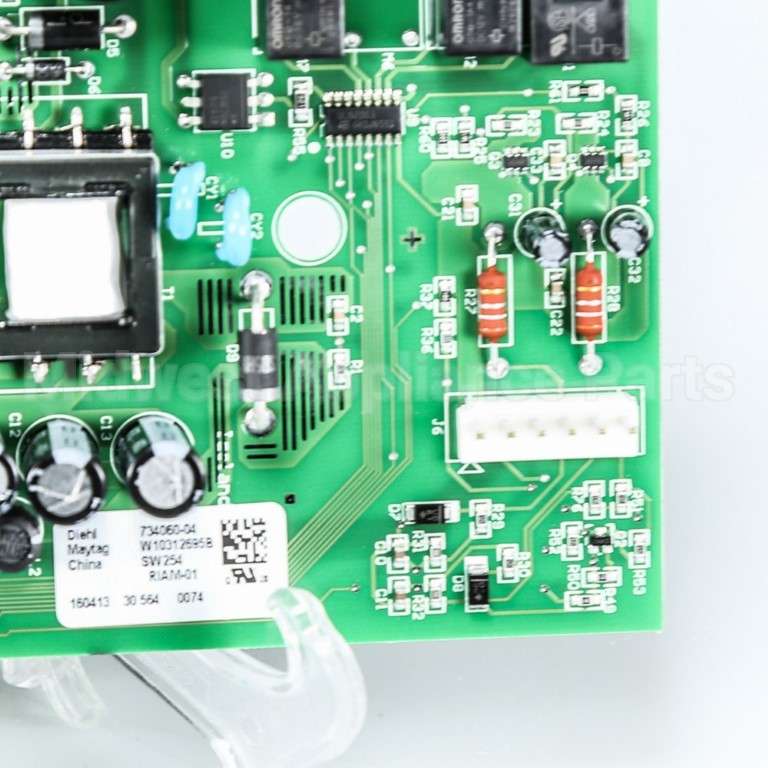

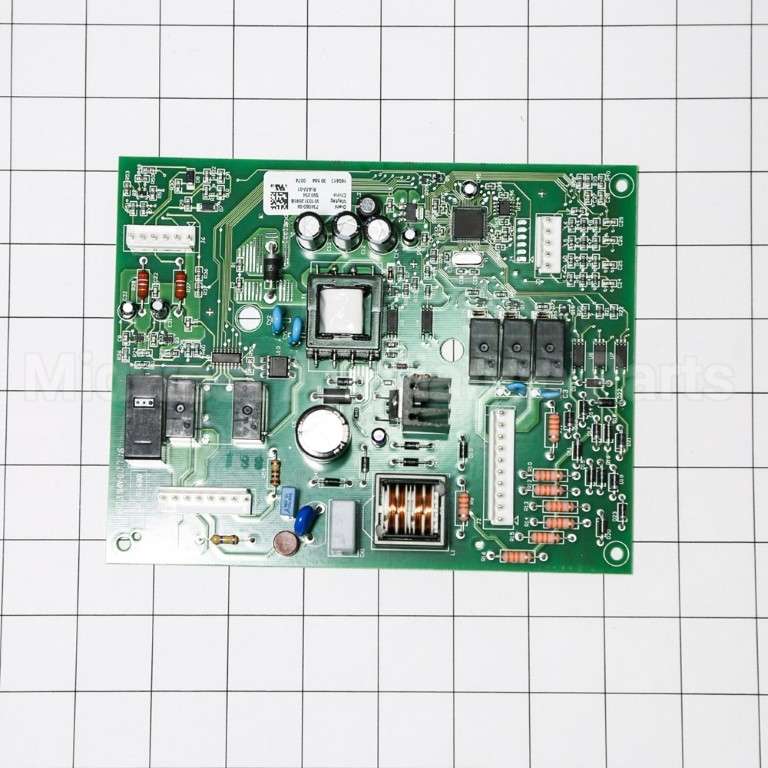

WPW10312695 Whirlpool Refrigerator Main Control Board

Whirlpool Control Board Replaces W10312695 Control Board. This Control Board Is A Common Board That Fails Due To A Multitude Of Reasons. You May See One Of The Following Problems With Your Refrigerator If Your Board Has Failed:
* Refrigerator Will Not Cool.
* Refrigerator Display Is Not Working Correctly.
* Refrigerator Keypad Is Not Working, Only Faint Glow And Buttons Are Not Responding.&Nbsp;
Please Note This Board Does Need To Be Programmed After Installing.&Nbsp;

Below Are The Instructions For How To Install This Board. These Instructions Were Provided By Whirlpool To The End User But Are Sometimes Missing Inside Of The Boxes.&Nbsp;

When You Install A New Control Board Whirlpool Part Number The Control Board Will Require That It Is Programmed Before It Will Operate.&Nbsp; To Program This Control Board Please Follow The Programming Instructions Below.

Programming Mode (Version 1):
Note: The Program Code Is Located On The Serial Plate On This Unit After The Word Code.

1. Press And Hold The Door Alarm Keypad.
2. Press And Hold Freezer Temperature Down /- Keypad Within 3 Seconds.
3. Release The Door Alarm Keypad And Wait 3 Seconds.
4. The Control Will Display Pe To Indicate The Programming Mode.
5. Entry Is Confirmed By Pressing The Freezer Temperature Down /- Keypad Once More.
6. The Control Will Display The Current Program Code. This Value Should Be Validated With The Program Code Printed On The Unit Serial Plate.
Note: If The Program Code Is Correct, The Programming Mode Is Exited By Pressing Door Alarm Keypad For 3 Seconds.
7. Press The Refrigerator Temperature Up /+ Keypad Or Refrigerator Temperature Down /- Keypad To Change The Digit Value With Each Key Press.
8. The Decimal Point Indicates The Selected Digit. Press The Freezer Temperature Up /+ Keypad To Select The Next Digit.
9. Once The Desired Program Code Is Entered, Press And Hold The Freezer Temperature Down /- Keypad Until The Program Code Begins Flashing
Indicating It Has Been Saved.
Note: If You Attempt To Enter An Invalid Program Code The Control Will Not Save The New Code, But Will Beep. (The Unit Will Not Run With A Program Code Of 0000). Once The Program Code Has Been Saved The Programming Mode Is Exited By Pressing Any Key. If The New Code Is Incorrect This Process Should Be Repeated.
The Programming Mode Can Be Exited At Any Time By Pressing Door Alarm Key For 3 Seconds Or Will Exit If Unattended For Four Minutes.

Programming Mode (Version 2):

Note: The Program Code Is Located On The Serial Plate On This Unit After The Word Code.
1. Press And Hold The Water Keypad.
2. Press And Hold Ll Keypad.
3. Release The Water Keypad And Wait 3 Seconds.
4. The Control Will Display Pe To Indicate The Programming Mode.
5. Entry Is Confirmed By Pressing The Ll Keypad Once More.
6. The Control Will Display The Current Program Code. This Value Should Be Validated With The Program Code Printed On The Unit Serial Plate. Note: If The Program Code Is Correct, The Programming Mode Is Exited By Pressing Water Keypad For 3 Seconds.
7. Press The Ur Keypad Or Lr Keypad To Change The Digit Value With Each Key Press.
8. The Decimal Point Indicates The Selected Digit. Press The Ul Keypad To Select The Next Digit.
9. Once The Desired Program Code Is Entered, Press And Hold The Ll Keypad Until The Program Code Begins Flashing Indicating It Has Been Saved.

Note: If You Attempt To Enter An Invalid Program Code The Control Will Not Save The New Code, But Will Beep. (The Unit Will Not Run With A Program Code Of 0000). Once The Program Code Has Been Saved The Programming Mode Is Exited By Pressing Any Key Or By Opening Or Closing The Refrigerator Door. If The New Code Is Incorrect This Process Should Be Repeated.

The Programming Mode Can Be Exited At Any Time By Pressing Water Key For 3 Seconds Or Will Exit If Unattended For Four Minutes.

Additional Notes, If You Are Experiencing This Problem Please Follow The Additional Instructions Below:&Nbsp;

"Unable To Get A Decimal Point After Board Replacement Just Get Pe0000 But Not Able To Get Any Further, I Double Checked Part Number And Seems To Be Correct, I Did Notice There Is A B At The End Of The Part Number On The New Board."

Or

"0000 Comes Up After The Pe -Can’t Get That To Change"

Solution Below:

Step 3 Says: “Release The Door Alarm Keypad And Wait 3 Seconds.” You Cannot Release The “Freezer Temperature Down /- Keypad” When You Do That. Only Release The Door Alarm Keypad.

Then The Pe Started Flashing, Showed Pe 0 And I Was Able To Proceed Through The Rest Of The Steps.

(Credit For These Steps Goes To Www.partsdr.com)&Nbsp;
